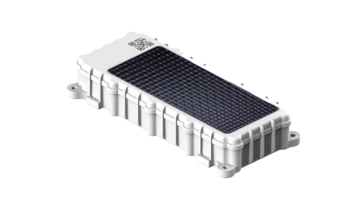

Solar Tracker Device Help and Information

Click here to download a copy of the TLP2-SFB Specifications Sheet

General

• Cellular Network
  • FDD: B1/B2/B3/B4/B5/B8/B12/B13/
    B19/B20/B25/B28
  • TDD: B39 (Cat M1 only)
  • EGPRS: 850/900/1800/1900MHz
• Location Technology
  • GNSS (GPS)
• Position Accuracy (CEP)
  • Autonomous <2m
• Rating
  • IP67
• Power
  • Rechargeable Li-Polymer 9600 mAh/
    3.6V

Physical

• Dimensions
  • 85mm*185mm*31mm (3.35” *7.28”
    *1.22”)
• Weight
  • 370g (13.05oz)
• Mounting
  • Magnet/Screw/Cable Tie/Glue

Environmental Operating Range

• Weather Resistance
  • -40°C to +70°C
• Operating Temperature
  • -25°C ~ +80°C (-13°F ~ 176°F)

Click here to download a copy of the Installation Instructions.

What are the key differences between the TLP1 and TLP2-SFB?

The TLP2-SFB has two significant differences, both causing the size of the device to be slightly larger than the TLP1.

– The battery is larger, allowing for longer battery life if/when there’s a lack of solar recharge
– The solar panel is larger, allowing for easier recharge in cloudy or inclement weather environments, also increasing battery recharge times when in clear and sunny environments

What is the battery size of the TLP2-SFB compared to the TLP1?

The TLP2-SFB has a battery size of 9600 mAh, whereas the TLP1 had a battery size of 4800 mAh.

Does the TLP2-SFB support 30-second reporting intervals?

Yes, similar to the TLP1, the TLP2-SFB supports 30-second updates, and supports all other configuration options possible on the TLP1.

What is the size of the TLP2-SFB, and how much does it weigh?

Dimensions: 85mm (3.35”) x 185mm (7.28”) x 31mm (1.22”)
Weight: 370g (13.05oz)

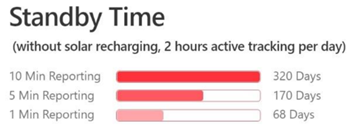

What is the expected battery life of the device?

Depending on the configuration the device can report up to 320 days.
